All extruded, heavy wall "Tiger Tail" suction hose for the sanitation industry. Smooth bore to minimise friction loss. Proprietary polyethylene, copolymer construction reinforced with a polyethylene kink resistant helix.
Yellow and black hose with black, heat-welded cuffs. Heavy duty.
Hose fittings not included - add from "Customers also bought" list, below.
Applications: Suction and discharge of liquids, especially in sanitary and sewer applications. Ideally suitable for the extraction of toilet waste from portable toilets. Used extensively on vacuum tankers and portable toilet cleaning trucks when servicing portable toilets, waste tanks, cesspits and septic tanks.
Offers durability and flexibility over standard PVC hose. Smooth interior for optimum flow and unique crush resistance. An external wear rib prevents damage from abrasion.
Can be used in vacuum and pressure applications (see chart for operating parameters and standard lengths). 1 foot extension pieces also available - latter manufactured to order.
Temperature Range: -40°C to +60°C in a 20°C ambient.
Length
ID & OD
Vacuum / Pressure / Weight
25' / 7.5m
50mm ID / 61mm OD
1.7 bar / 0.95 / 11Kg

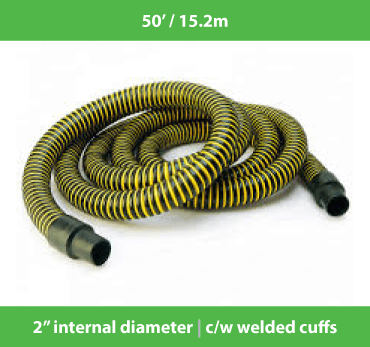

50' / 15.2m
50mm ID / 61mm OD
1.7 bar / 0.95 / 20Kg

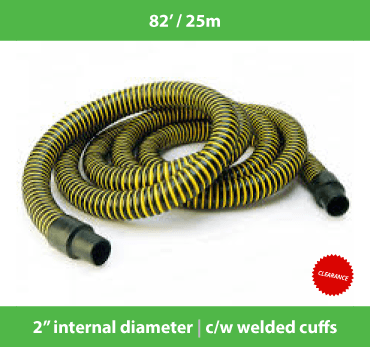

82' / 25m
50mm ID / 61mm OD
1.7 bar / 0.95 / 35Kg

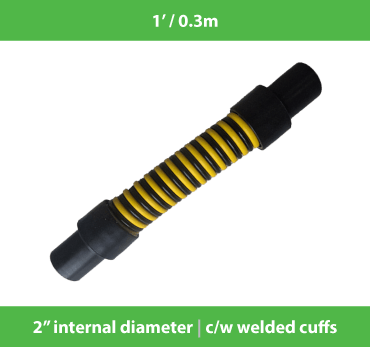

1' / 0.3m
50mm ID / 61mm OD
1.7 bar / 0.95 / 1Kg
Use Camlock Parts E and C to make connections to ball valves / vacuum equipment (see below).
