On Demand Water Pump | 16 amp | 230v & 110v Versions

On Demand Water Pump | 16 amp | 230v & 110v Versions

SKU: Part Code : IBC-PUMP-KIT-COMPLETE-03

£535.00

plus Shipping & VAT. Calculated at Checkout

Hurry up, only 3 items left in stock.

Voltage: 230 volt

230 volt 110 volt

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product Details

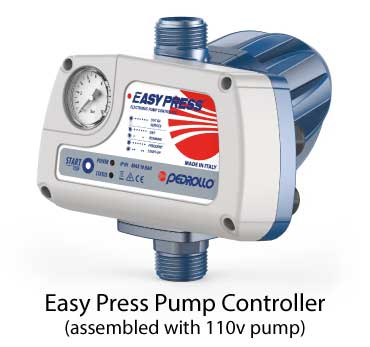

Self-priming pump with a stainless steel pump body and impeller. The pump is fitted with an automatic pump controller to start and stop the pump, thus replacing a traditional pressure switch. With the ability to draw water and liquids that contain air, they are ideal for the portable sanitation industry.

They pump water (from IBCs, water bowsers or larger water tanks) across to site welfare cabins etc. The pump is started when, as a tap is turned on, the pressure in the system

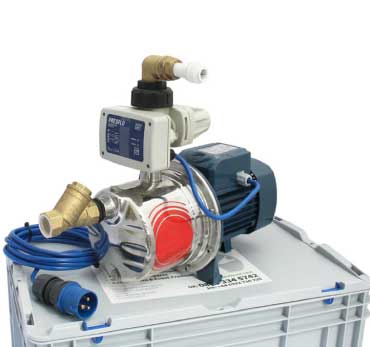

Electric 110v or 230v water pump, controller and self-regulating pressure switch, 16amp site plug and 1" brass filter assembled before the pump inlet.

Inlet: 1".
Outlet: 15mm quick release fitting for rigid pipework common to most site cabins. Quick-connect fitting can be removed to leave a 1" female BSP outlet.

Often sold with the optional polypropylene box for wet weather protection. Box dimensions (mm): 600 long x 400 wide x 440 tall. Single skin polypropylene plastic with hinged lid. When sold with the protective box, hoses will fit through the vertical faces of the box so that the box lid remains shut.

See more pump details on our main website

Typical performance indication:

Pump Name	Maximum flow / most efficient performance
230v - FUTURE JETm 2A-ST	Up to 120 lpm / 60 lpm
110v - FUTURE JETm 1A - ST	Up to 100 lpm / 60 lpm

*lpm = litres per minute

Actual performance depends on the distance to be pumped, the actual flow required, the internal diameter of pipework used. As a typical example, if this pump is connected to a 4 person toilet block with just a few metres between pump and toilet, and all 4 toilets are flushed at the same time, the cisterns will require 24 litres to refill plus an allowance for water running through hand washbasins. In this scenario the application is hardly likely to require anything more than ca. 30 litres per minute, far below the potential performance of the pump.

We can advise on actual performance on a case-by-case basis.
