Pressure Relief Valves

Pressure Relief Valves

1 2
Quantity
Thread Size

PRODUCT DESCRIPTION

Pressure relief valve with BSP male thread and hose tail. Suitable for vacuum tanker applications. Usually mounted on the pressure vessel itself, this device serves to relieve overpressure in the event of a blockage when the vacuum pump is operating in pressure mode.

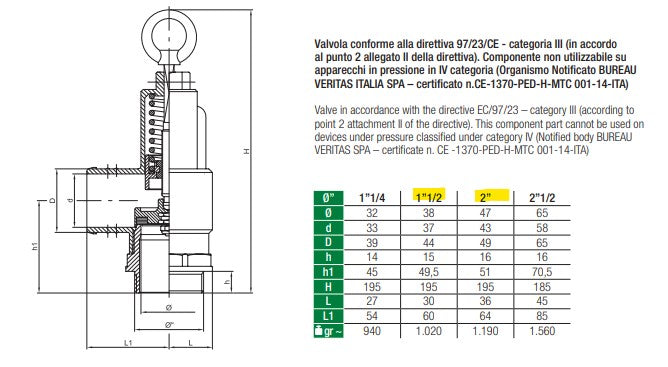

 BSP Size Adjustment
1½" 0.3 bar to 1.5 bar (4 PSI to 22 PSI)
2" 0.2 bar to 0.7 bar (3 PSI to 10 PSI)


SPECIFICATION
- Working temperature = -15°C +60°C
- BSP PARALLEL UNI EN ISO 228/1 THREAD

Part Code : VAC-04

View full details
£60.00 GBP
£60.00 GBP
Sale Sold out

plus VAT & Shipping, calculated at checkout

Quantity
Thread Size

Low stock: 2 left
