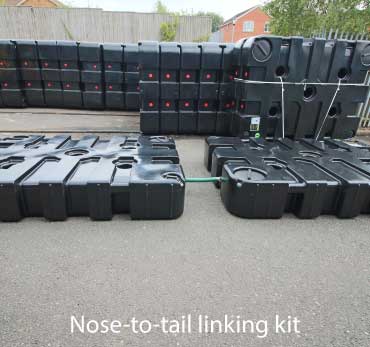

Connect 2 x Tuff Tanks of the same volume, nose-to-tail. Repeat as required for more linked tanks. Once the waste receiving tank has filled to the level of the linking pipe, waste will then flow through to the second tank. Once the waste in the second tank reaches the link pipe level, both tanks will then fill at the same rate.
Kit contents:
2 x 2" male adaptors - Part F 2 x 2" dust caps - Part DC 1 x 2" ID (internal diameter) hose (68cms long) fitted with 2" x hose couplers.
The Part F male adaptors are fitted to the Tuff Tank using the inbuilt brass inserts in the tank's vertical short faces - usually found underneath red or yellow cosmetic caps. See our downloads section for fitting instructions, which should take no longer than 5-10 minutes per tank.
When the nose-to-tail link kit is fitted, Tuff Tanks will be 53cms apart. To return tanks to unlinked status, empty waste, remove hose and "seal" tanks using the 2" dust caps.
