Ball Valve - 2" - PVC - BSP Threads

Ball Valve - 2" - PVC - BSP Threads

1 1
Quantity

PRODUCT DESCRIPTION

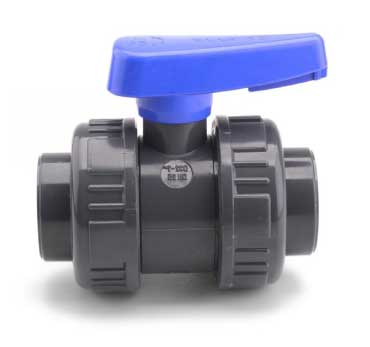

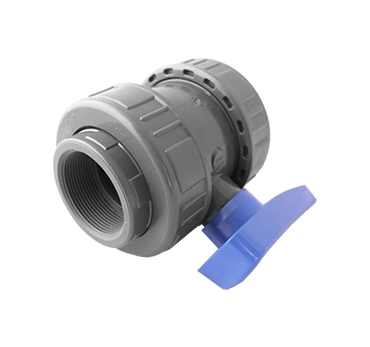

2" / 50mm female (internal) BSP thread at both ends This is an "Effast" PVC double union ball valve with two union ends so that the valve can be demounted from a pipeline / hose fitting for refurbishment, cleaning or repair. These valves are described as "economy" meaning they are batch tested 1 in 1000.

Overall dimensions: ca. 150mm long x 110mm diameter + additional 50mm "height" for handle. Replacement handles are available. The handle has been specifically designed as a teardrop shape in order to provide a secure grip.

These  ball valves have a locking end which enables you to adjust the torque on the ball in the valve, depending on the water pressure. Before assembly you should always check the locking end and tighten if necessary; if it's too loose, the valve will leak. The handle of the valve can be removed and used as a spanner to tighten the locking end: remove the end cuff and the underside of the handle locates into slots to give better tightening purchase.

Part Code : BALL-09

View full details
£75.00 GBP
£75.00 GBP
Sale Sold out

plus VAT

Quantity

11 in stock
